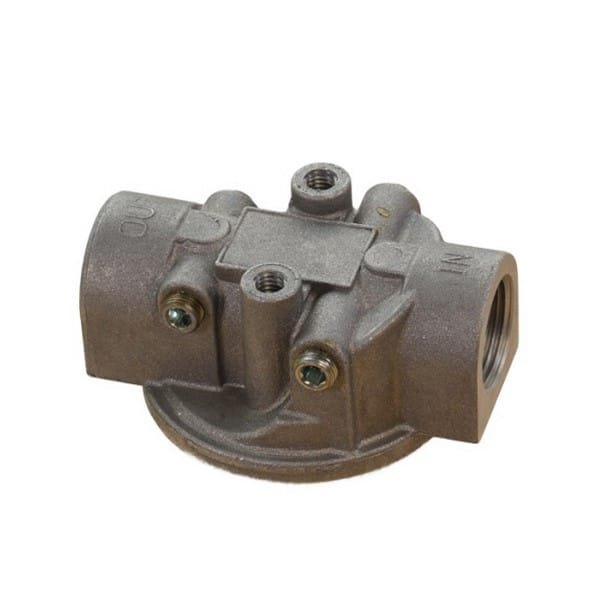

1 1/4″ BSP Spin On Section Line Filter Head
SOH Series | THL.20ST1 Spin On Suction Line Filter Head | 1 1/4″ BSP | for SOE10 Element Cartridge
Web Price:
Original price was: R885.50.R708.40Current price is: R708.40.
Stock:
3 in stock
SOH Series THL.20ST1 Spin On Suction Line Filter Head 1 1/4″ BSP G-20
Spin On Single Cartridge Filter Head
For In-line Low Pressure Hydraulic Circuit Mounting
Note: The Heads and Elements are sold separately!
SO Series – Series HL | THL
Filter Head also known as THL.20ST1
Port Size: 1 1/4″ BSPP | G-20
Filter Indicator Port Size: 1/8” BSPP | G-02
Filter Element Thread 1: 3/4” BSPP | G-12
Filter Element Thread 2: 1 1/2″-16 UNF
Mounting Bolt Holes Size: M8
By-pass/Check Valve: 0.25Bar on Suction line
Filter Head: Aluminium Die-casting
Seals: Standard Buna-N
Operating Temperature: -30°C to +110°C
Operating Pressure: 12Bar
Burst Pressure: 25Bar
Element Collapse Pressure: 5Bar
Standard: ISO 2941, ISO 3724, ISO 3968
Filter Indicators sold separately!
Filter Indicator Gauge to be used: PG-FILTER-R (Return) PG-FILTER-S (Suction)
Electrical Return Line Filter indicator to be used: FI-FI-E-02
Filter Element/Cartridge needed is FI-SOE10
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
Other known codes: FI-SOH1012-S, THL.20ST1, SO10A
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
Delivery & Collection Information
If you select the Courier option:
We use The Courier Guy to deliver your parcel to all major City's and towns within South Africa.
You will receive a waybill notification once you have checked out and made payment.
You can track your parcel via this link using the waybill/code provided on email:
Track your parcel here
Local deliveries are next day within the Cape Town - Western Cape area.
National deliveries are between 3-4 days depending on where you are located.
Collection or "I will send my own courier" Options:
You will need to select if you are collecting yourself or sending your courier company to collect.
We need for you or your courier service to provide your Invoice number upon collection.
You will receive an Invoice once payment is confirmed and the order has been picked and packed. The invoice will be a notification that you can now come collect or send your courier service.
SOH Series THL.20ST1 Spin On Suction Line Filter Head 1 1/4″ BSP G-20
Spin On Single Cartridge Filter Head
For In-line Low Pressure Hydraulic Circuit Mounting
Note: The Heads and Elements are sold separately!
SO Series – Series HL | THL
Filter Head also known as THL.20ST1
Port Size: 1 1/4″ BSPP | G-20
Filter Indicator Port Size: 1/8” BSPP | G-02
Filter Element Thread 1: 3/4” BSPP | G-12
Filter Element Thread 2: 1 1/2″-16 UNF
Mounting Bolt Holes Size: M8
By-pass/Check Valve: 0.25Bar on Suction line
Filter Head: Aluminium Die-casting
Seals: Standard Buna-N
Operating Temperature: -30°C to +110°C
Operating Pressure: 12Bar
Burst Pressure: 25Bar
Element Collapse Pressure: 5Bar
Standard: ISO 2941, ISO 3724, ISO 3968
Filter Indicators sold separately!
Filter Indicator Gauge to be used: PG-FILTER-R (Return) PG-FILTER-S (Suction)
Electrical Return Line Filter indicator to be used: FI-FI-E-02
Filter Element/Cartridge needed is FI-SOE10
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
Other known codes: FI-SOH1012-S, THL.20ST1, SO10A
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
Delivery & Collection Information
If you select the Courier option:
We use The Courier Guy to deliver your parcel to all major City's and towns within South Africa.
You will receive a waybill notification once you have checked out and made payment.
You can track your parcel via this link using the waybill/code provided on email:
Track your parcel here
Local deliveries are next day within the Cape Town - Western Cape area.
National deliveries are between 3-4 days depending on where you are located.
Collection or "I will send my own courier" Options:
You will need to select if you are collecting yourself or sending your courier company to collect.
We need for you or your courier service to provide your Invoice number upon collection.
You will receive an Invoice once payment is confirmed and the order has been picked and packed. The invoice will be a notification that you can now come collect or send your courier service.
Customers Also Viewed

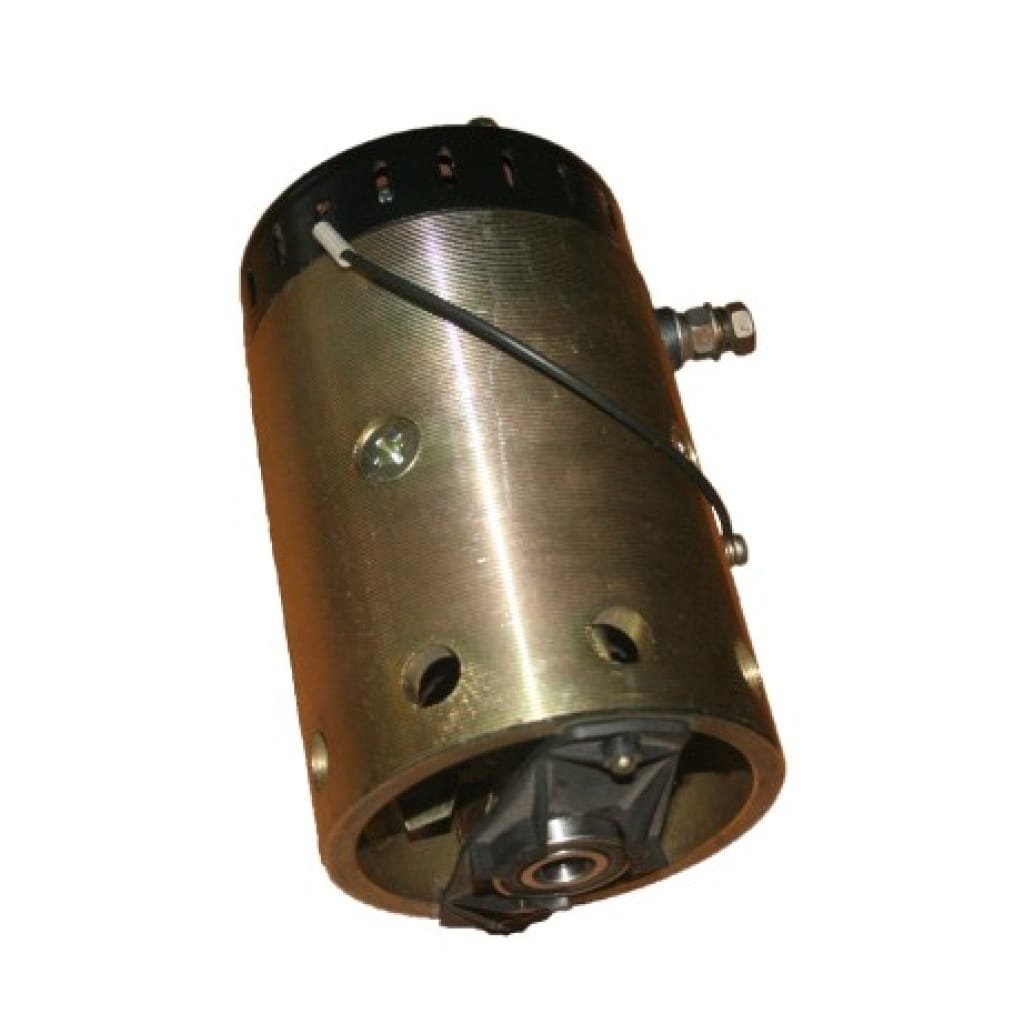

Electric Motor 12VDC ACW plus Fan
