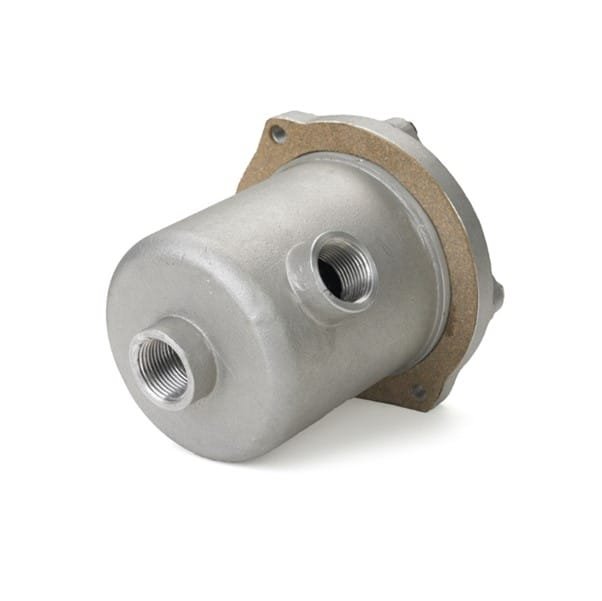

1/2″ BSP Under Tank Lid Filter 18Lpm 10Mic
Under Tank Lid Return Line Filter | Complete Filter | 10Mic | 1/2″ BSP G-08 | 18Lpm | FAR.05
Web Price:
Original price was: R2,415.00.R1,932.00Current price is: R1,932.00.
Stock:
1 in stock
1/2” BSP Under Tank Lid Return Line Filter – 10Mic Reinforced Paper Nom – 18Lpm
Under Tank Lid Return Line Filter – Complete
UCF Series – FAR Series
Also known as FAR.05
2 Fixing Bolt Holes
Bolt Hole Size: Ø7.5mm
Inlet Port Size: 1/2″ BSPP | G-08
Bolt Centre Diameter: 100mm
Full Length: 125mm
Filter Indicator Port Size: 1/8” BSPP | G-02
Outlet Size: 1/2” BSPP | G-08
Penetration Spigot Width (excluding Inlet port): 71mm
Filter Element: 10µ Reinforced Paper nom
Flow Rate: 18Lpm
Filter Indicators sold separately!
Return Line Filter Indicator Gauge to be used: PG-FILTER-R
Replacement Element to be used: FI-RTFE-0310
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
Technical features:
Cover: Aluminium die-casting
Filter Body: Aluminium die-casting
By-pass valve: Standard opening 1.7Bar (return)
Seals: Buna-N standard
Operating Temperature: -25°C to +110°C
Operating Pressure: 15Bar
Burst Pressure: 45Bar
Element collapse pressure: 10Bar
Tested according standards: ISO 2941 / ISO 3724 / ISO 3968
UCF Series – FAR Series Under Tank Lid filters are directly assembled on hydraulic tank covers, to clean fluid by contamination deriving from previous work on system components.
Other known codes: FI-UCF-01210, FAR.05KNR, FAR.05
