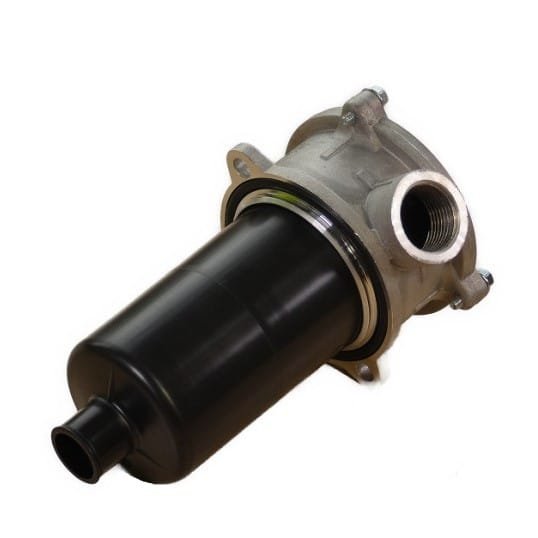

1″ BSP 10Mic 68Lpm Tank Top Filter
Tank Top Return Line Filter | Complete Filter | 10Mic | 2 Hole | 1″ BSP G-16 | 68Lpm | SIF.20C
Web Price:
Original price was: R1,437.50.R1,150.00Current price is: R1,150.00.
Stock:
5 in stock
Tank Top Return Line Filter – Complete – 1″ BSP – 2Hole – 10Mic – 68Lpm
Tank Top Return Line Filter
RTF Series – SIF Series
Also known as SIF.20C10
2 Fixing Bolt Holes
Bolt Hole Size: 9mm
Inlet Port Size: 1″ BSPP | G-16
Bolt Centre Diameter: 115mm
Full Length: 218mm
Filter Indicator Port Size: 1/8” BSPP | G-02
Outlet Barb Width: 28mm
Penetration Spigot Width: 86mm
Filter Element: 10µ Paper nom
Filter Indicators sold separately!
Return Line Filter Indicator Gauge to be used: PG-FILTER-R
Electrical Return Line Filter indicator to be used: FI-FI-E-02
Replacement Element to be used: FI-RTFE-1010
Fluid Compatibility:
Mineral oil HH-HL-HM-HR-HV-HG
Synthetic fluids HS-HFDR-HFDU-HFDS
Technical features:
Head & Cover are aluminium die-casting
Filter bowl: Nylon (Plastic)
Filter Element: 10 Micron nom Paper
By-pass valve: Standard opening 1.7bar
Seal: Standard BUNA-N
Flow Rate: 68Lpm
Operating Temperature: -25°C to +110°C
Operating Pressure: 3Bar / 30Lpm
Burst Pressure: 10Bar
Tested according standards: ISO 2941 / ISO 3724 / ISO 3968
SIF Series – RTF Series Tank Top filters are directly assembled on hydraulic tank covers, to clean fluid by contamination deriving from previous work on system components.
Other known codes: FI-RTF-1010, SIF.20CM10C, SIF.20C10, SIF.20C
