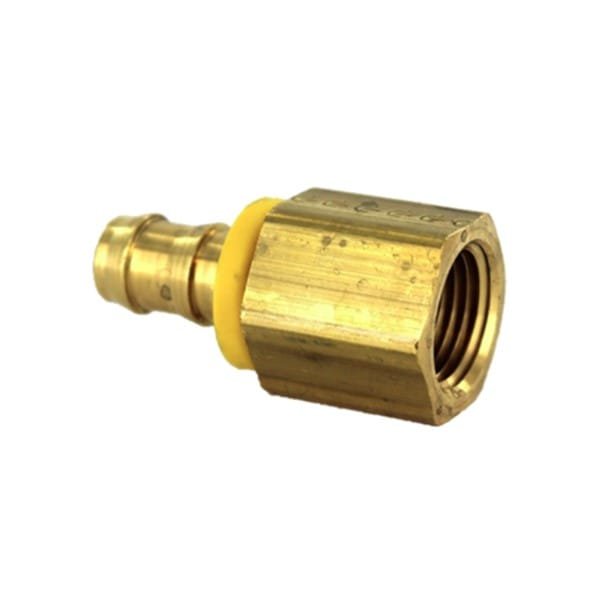

3/8″ Push-Lok Barb 3/8″ NPT Female Thread
30282-6-6B 82 Series 3/8″ (-06) Push-Lok Barb to 3/8″ (-06) NPTF Female Fitting – Brass Body
Web Price:
Original price was: R119.03.R95.22Current price is: R95.22.
Stock:
30 in stock
3/8″ (-06) Push-Lok Barb to 3/8″ (-06) NPTF Female Brass Fitting
82 Series Low Pressure Push-Lok Barb Self-Grip Fitting
Push-Lok Female NPTF Pipe – Rigid – Straight
Specifications: SAE J476A / J516
Equivalent to Parker 30282-6-6B
All Push-Lok fittings are reusable if not damaged
To be used with Push-Lok or Equivalent Hose
No tools or clamps are required if used with Push-Lok or equivalent hose
Brass Body
Hose I.D. Size: 3/8″ | DN 10 | -06 | 9.5mm
Thread Size: “3/8” (-06) NPTF Female | 3/8×18
Fluid Type to be used:
Air (General Industrial Air), Coolants (Glycol), Fuels – Check fuel type with our catalogue chart., Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base), Water
Industry Applications:
Machine Tools, Paper Industry, Injection Moulding Machines, Chemical Industry, Transfer Lines, Automotive, Blow Forming Machines, Robots, Welding Installations, Power Electronics.
Main Applications:
Cooling and cutting fluid circuits, Water circuits for tool cooling and temperature control, Compressed air, Leak oil, Water, emulsions and alkalis, Vacuum, Welding gun cooling, Cooling circuits for thyristor controls
NPTF Stands for: National Pipe Taper Fuel (NPTF), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1. 20.3, designed to provide a more leak-free seal without the use of PTFE tape (aka “Teflon”) or other sealant compound. NPTF can be used with normal NPT.
Other know codes: PL-NPTF-0606B, 30282-6-6B, 30282-06-06
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
Delivery & Collection Information
If you select the Courier option:
We use The Courier Guy to deliver your parcel to all major City's and towns within South Africa.
You will receive a waybill notification once you have checked out and made payment.
You can track your parcel via this link using the waybill/code provided on email:
Track your parcel here
Local deliveries are next day within the Cape Town - Western Cape area.
National deliveries are between 3-4 days depending on where you are located.
Collection or "I will send my own courier" Options:
You will need to select if you are collecting yourself or sending your courier company to collect.
We need for you or your courier service to provide your Invoice number upon collection.
You will receive an Invoice once payment is confirmed and the order has been picked and packed. The invoice will be a notification that you can now come collect or send your courier service.
3/8″ (-06) Push-Lok Barb to 3/8″ (-06) NPTF Female Brass Fitting
82 Series Low Pressure Push-Lok Barb Self-Grip Fitting
Push-Lok Female NPTF Pipe – Rigid – Straight
Specifications: SAE J476A / J516
Equivalent to Parker 30282-6-6B
All Push-Lok fittings are reusable if not damaged
To be used with Push-Lok or Equivalent Hose
No tools or clamps are required if used with Push-Lok or equivalent hose
Brass Body
Hose I.D. Size: 3/8″ | DN 10 | -06 | 9.5mm
Thread Size: “3/8” (-06) NPTF Female | 3/8×18
Fluid Type to be used:
Air (General Industrial Air), Coolants (Glycol), Fuels – Check fuel type with our catalogue chart., Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base), Water
Industry Applications:
Machine Tools, Paper Industry, Injection Moulding Machines, Chemical Industry, Transfer Lines, Automotive, Blow Forming Machines, Robots, Welding Installations, Power Electronics.
Main Applications:
Cooling and cutting fluid circuits, Water circuits for tool cooling and temperature control, Compressed air, Leak oil, Water, emulsions and alkalis, Vacuum, Welding gun cooling, Cooling circuits for thyristor controls
NPTF Stands for: National Pipe Taper Fuel (NPTF), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1. 20.3, designed to provide a more leak-free seal without the use of PTFE tape (aka “Teflon”) or other sealant compound. NPTF can be used with normal NPT.
Other know codes: PL-NPTF-0606B, 30282-6-6B, 30282-06-06
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
