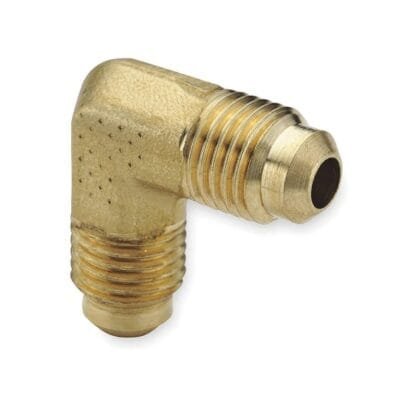

3/8″ SAE M x 3/8″ SAE M 90° Elbow
LP Brass Adapter – 3/8″ SAE Male x 3/8″ SAE Male 90° Elbow – 45° Flare Adapter
Web Price:
Original price was: R119.03.R95.22Current price is: R95.22.
Stock:
1 in stock
3/8″ SAE Male x 3/8″ SAE Male 90° Elbow – Low Pressure Brass Adapter
Side 1 I.D. Tube Size: -06 | 3/8″
Side 1 Thread: SAE Male
Side 2 I.D. Tube Size: -06 | 3/8″
Side 2 Thread: SAE Male
Brand: Parker Low Pressure Brass Adapters
Connection Type: 45° Flare SAE Male 90° Elbow
Operating Temp: -54°C to +121°C
Max Operating Pressure: 69Bar / 1000Psi
Tube Material: Copper, Aluminium, Brass, Steel Tubing that can be flared 45°
Operating Fluid: Water, Air, Insert and non-combustible gasses, materials for construction, Flammable liquid and Freon
Application: Air lines, Lubrication lines, Refrigerant lines, Machinery, Compressors, Fluid transfer, Flammable liquid, Marine
Markets: Refrigeration, Heavy duty trucks, Mobile, Industrial, Air Conditioning, Construction
Product Features: All Brass (CA360 or CA345 Brass) Body Construction, Viton O-Ring
Meets Functional Requirements: SAE J512 and SAE J513
Ref: SAE 010201
Parker’s 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the Body makes for extreme dependability and Safety. Flare fittings are appropriate alternatives for solder Type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications.
Known codes: LB-155F, 155F, B074PV8CW, 2P169, PAR155F, 55-, 55R-, 468140000
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
Delivery & Collection Information
If you select the Courier option:
We use The Courier Guy to deliver your parcel to all major City's and towns within South Africa.
You will receive a waybill notification once you have checked out and made payment.
You can track your parcel via this link using the waybill/code provided on email:
Track your parcel here
Local deliveries are next day within the Cape Town - Western Cape area.
National deliveries are between 3-4 days depending on where you are located.
Collection or "I will send my own courier" Options:
You will need to select if you are collecting yourself or sending your courier company to collect.
We need for you or your courier service to provide your Invoice number upon collection.
You will receive an Invoice once payment is confirmed and the order has been picked and packed. The invoice will be a notification that you can now come collect or send your courier service.
