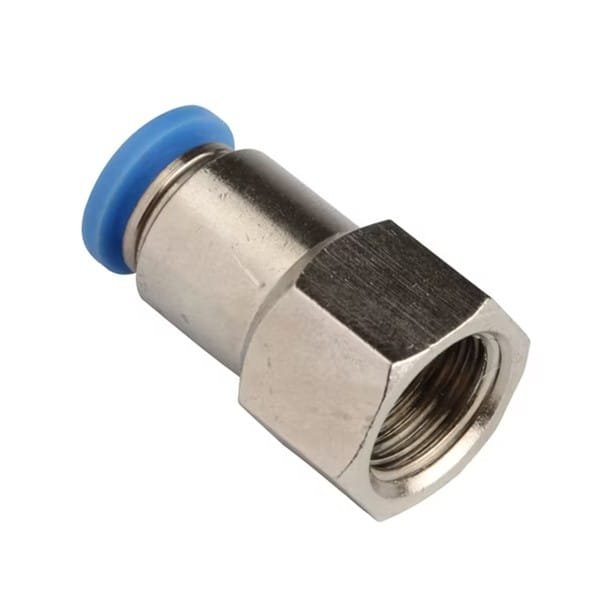

4mm Tube to 1/8″ BSPT Female Straight
Pneumatic Push in Fitting | 04mm Tube End OD | to 1/8″ (1/8″R) -02 BSP Tapered Female | Straight Tube to Thread | Nickel Plated Connector
Web Price:
R0.00
Stock:
Pneumatic Push in 04mm Tube to 1/8″ (-02) BSP Tapered Female
Also known as PCF Hexagon Female Straight, PCF Female Straight
Tube to Thread Straight Standard Series
Pneumatic Push-in or One-touch connector
Tube End OD Size: 04mm
Thread End Size: 1/8″ | Dash size -02 | R1/8″
Thread End Connection: BSP Tapered (BSPT) Female
Fitting Material: Nickel Plated Brass
Application: Air and Water only
Compatibility: PU – Polyurethane and Nylon tubing
Working Pressure: Vacuum 0.95 to 10Bar | 14 to 145Psi
Temperature Range: 0°C to +60°C
Fluid Medium: Compressed Air & Water
Notes: Remove Dust and Impurities from Hose Before Insertion. Do not Over Tighten Threaded Parts
Other codes: P-GAI-0402, PCF04-01, PCF4-01, P2.04.1/8
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures (we stock the T and standard nuts) , but they are functionally the same.
