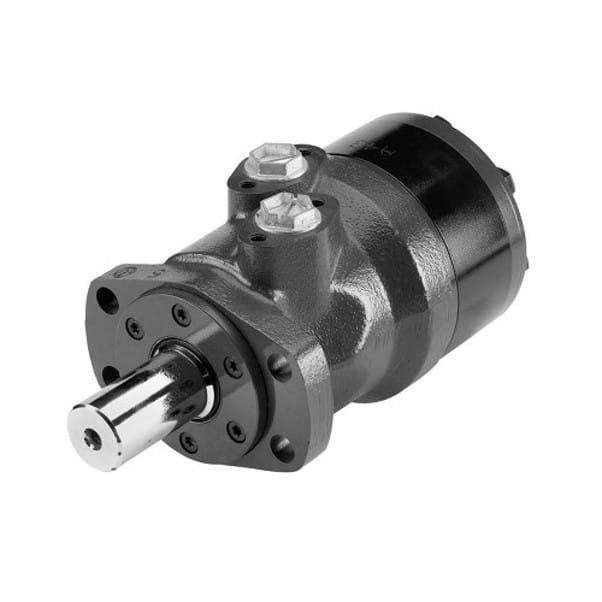

BMR 080 Magneto Flange Cylindrical Shaft Motor
BMR Series 80cc Geroler Gear Type Motor – Ø25 Cylindrical Shaft, Magneto SAE-A Flange, Pilot Ø82.5×8
Web Price:
Original price was: R6,440.00.R5,152.00Current price is: R5,152.00.
Stock:
1 in stock
BMR Series 80cc Geroler Gear Type Motor – Ø25 Shaft, Magneto SAE-A Flange
Series: BMR Series
Category: Geroler Gear Type – Hydraulic Orbital Motor
Type: Axil Distribution Motors
Geometric Displacement (cm³/rev.): 81.500cc
Flange 4: Ø13.5 Rhomb-flange, Pilot Ø82.50
Magneto Flange, SAE-A, 2+2Bolt
Output Shaft A: Ø25 – parallel key 8x7x32
Cylindrical Shaft
Manifold Mount: 4-M8
Side Ports: G08 = 1/2” BSP
Drain Port: G04 = 1/4” BSP
Continuous Max Speed: 750rpm
Intermittent Max Speed: 940rpm
Continuous Max Torque: 195Nm
Intermittent Max Torque: 220Nm
Peak Max Torque: 270Nm
Continuous Max Output: 12.50kW
Intermittent Max Output: 15kW
Continuous Max Pressure Drop: 17.50MPa/175Bar
Intermittent Max Pressure Drop: 20MPa/200Bar
Peak Max Pressure Drop: 22.50MPa/225Bar
Continuous Max Flow: 60L/min
Intermittent Max Flow: 75L/min
Continuous pressure: Max. value of operating motor continuously.
Intermittent pressure: Max. value of operating motor in 6 sec per minute.
Peak pressure: Max. value of operating motor in 0.6 sec per minute.
BMR Series motors adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure. They provide reliable – smooth operation, high efficiency and long life.
Characteristic Features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up.
They provide smooth, reliable operating and high efficiency.
Shaft seal can bear higher pressure of back and the motor can be used in parallel or in series.
Special design in the driver-linker and prolong operating life.
Special design for distribution system can meet the requirement of low noise of unit.
Compact volume and easy installation.
Other known codes: BMR-80-4-A-D, BMR80-4-A-D, BMR804AD, BMR-080-22BM25, OMR-80, OMR 80
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
