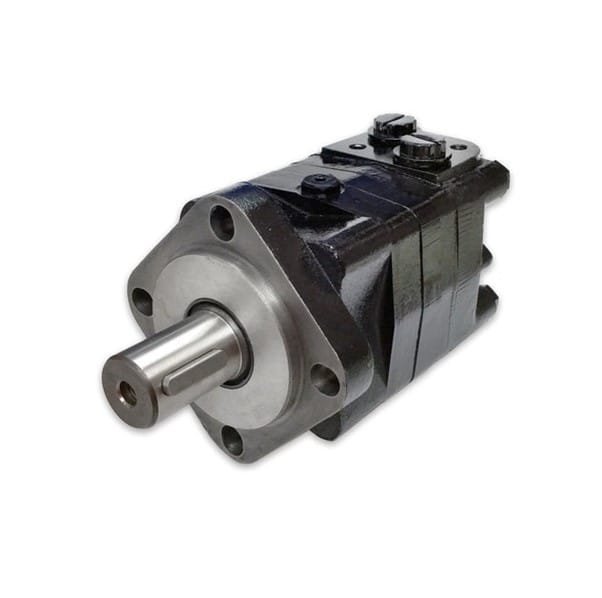

BMS 315 4Bolt SAE-A Flange Cylindrical Shaft Motor
BMS Series 315cc Geroler Gear Type Motor – Ø32 Cylindrical Shaft, 4Bolt SAE-A Ø106.4 Flange
Web Price:
Original price was: R13,225.00.R10,580.00Current price is: R10,580.00.
Stock:
1 in stock
BMS Series 315cc Geroler Gear Type Motor – Ø32 Cylindrical Shaft, 4Bolt SAE-A Ø106.4 Flange
Series: BMS Series
Category: Geroler Gear Type – Hydraulic Orbital Motor
Type: Disc Distribution Motors
Geometric Displacement (cm³/rev.): 314.50cc
Flange E4 = Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3
SAE-A, 4Bolt Flange
Output Shaft B = Ø32, parallel key 10x8x45
Cylindrical Shaft
Manifold Mount: 2-M10
Side Ports: G08 = 1/2” BSP
Drain Port: G04 = 1/4” BSP
Continuous Max Speed: 240rpm
Intermittent Max Speed: 280rpm
Continuous Max Torque: 560Nm
Intermittent Max Torque: 658Nm
Peak Max Torque: 740Nm
Continuous Max Output: 14.10kW
Intermittent Max Output: 18.90kW
Continuous Max Pressure Drop: 12MPa/120Bar
Intermittent Max Pressure Drop: 14MPa/140Bar
Peak Max Pressure Drop: 18.50MPa/185Bar
Continuous Max Flow: 75L/min
Intermittent Max Flow: 90L/min
Continuous Max Inlet Pressure: 25MPa/250Bar
Intermittent Max Inlet Pressure: 30MPa/300Bar
Continuous pressure: Max. value of operating motor continuously.
Intermittent pressure: Max. value of operating motor in 6 sec per minute.
Peak pressure: Max. value of operating motor in 0.6 sec per minute.
BMS Series motors adapt the advanced Geroler gear set design with disc distribution flow and high pressure.
Characteristic Features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up.
They provide smooth, reliable operating and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces. They offer capacities of high pressure and high torque in different applications.
Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life. They provide smooth and reliable operation.
Other known codes: BMS-315-E4-B-D, BMS315-E4-B-D, BMS315E4BD, BMS-315-4BM32, OMS-315, OMS 315
