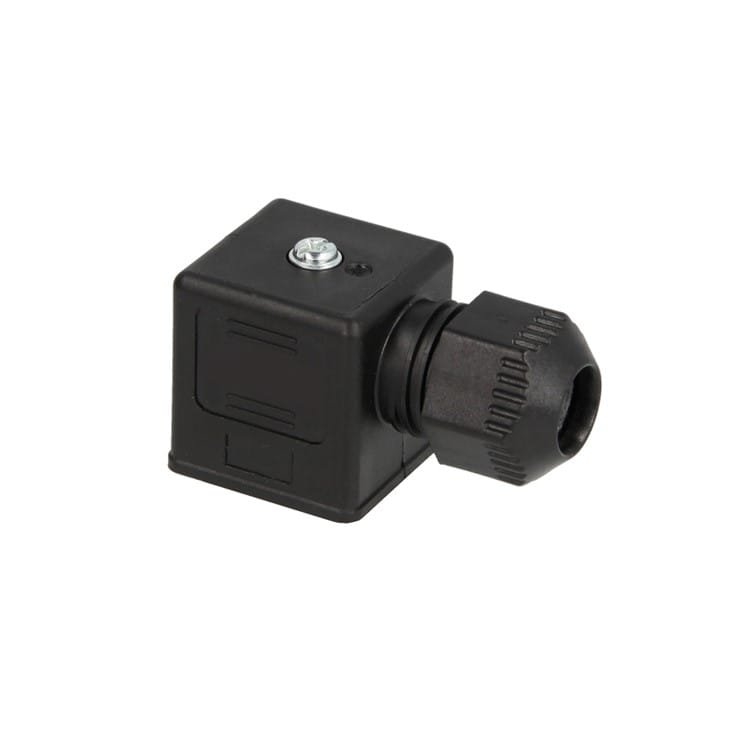

DIN Plug Hirschmann Connector STD 3PIN
Hystar German Standard DIN 43650 Plug | Type HKA | 2Pin + Earth/Ground | No LED | Black Housing
Web Price:
Original price was: R58.65.R46.92Current price is: R46.92.
Stock:
9 in stock
Hystar DIN 43650 Hirschmann Connector | 3Pin = 2 + Ground/Earth
Hystar German DIN Standard 43650 Plug
Type: HKA | DIN 43650 Plug
Connectors/Number of Poles: 3P+ Ground (3Pin)
No LED light
Torques for screw: 0.5 – 0.7Nm
Housing: Black PA+30%GF
Contact Holder: PA+30%GF
Gasket: Thermoplastic Rubber
Max Voltage: AC 250V | DC 300V
Max Current: 16A
Operating Current: 10A
Spacing: 18mm
Protection Class: IP 65, DIN 40050
Insolation Class: C-VDE0110
Operating Temperature: -40°C to +150°C
Known codes: VV-DIN-BLACK, 927801118, KA132000B1, DIN 43650
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, depends on what manufacturer sends, but they are functionally the same.
