Dual Over Centre Valve 1/2inch
Dual Over Centre Counterbalance Valve, 1/2″ BSP, 60lpm, Max 350bar
Web Price:
Original price was: R5,922.50.R4,738.00Current price is: R4,738.00.
Stock:
12 in stock

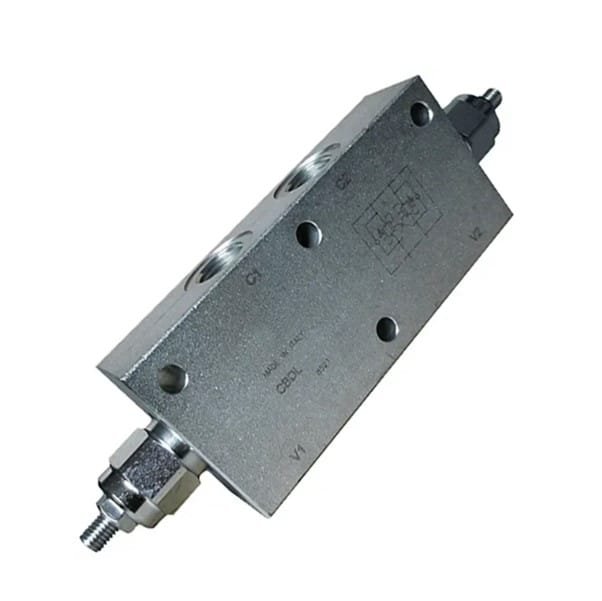

Dual Over Centre (Counterbalance) Valve 1/2″
- OFC Villa CBDL Series Double Acting Counterbalance Valve In Line
- Counterbalance Valve
- Zinc Plated steel manifold, hardened steel inner parts.
- Ports: 1/2″ BSP = G-08
- Flow Rate: 60Lpm
- Working Pressure: 100 – 350Bar
- Working Temperature: -20°C to +90°C
- Pilot Ratio: 4.2:1
- Over-center valve stops flow in one direction until pilot pressure is applied in the pilot port, then it opens.
- In duel over-center valves, the pilot lines are internal.
- Not as jerky as pilot check, works better for sooth load control. Should be adjusted to 30% above load pressure (wp)
Other known codes: CBDL0330, LH-WBCADELU03B, WBCDELU-03B, WBCADELU03B
