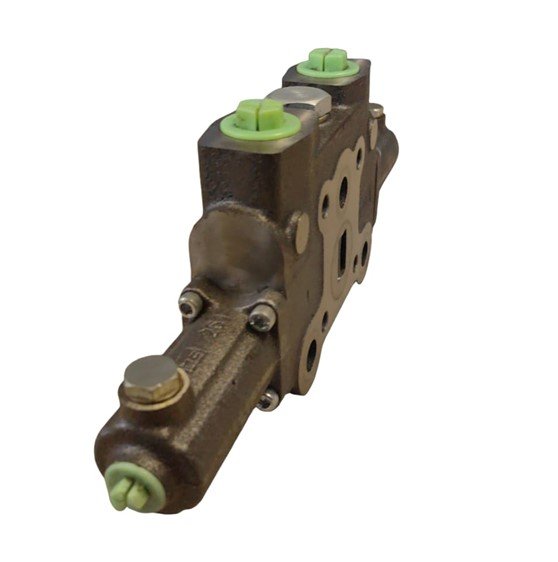

HC-D16 Hydraulic Pilot Work Section 3/4″ BSP
HC-D16 Series Sectional Valves | Hydraulic Pilot Work Section + Check Valve | No Port Relief Facility | 3/4″ BSP -G12 (A) & (B) Ports | 150Lpm 345Bar
Web Price:
Original price was: R5,865.00.R4,692.00Current price is: R4,692.00.
Stock:
Enquire on ETA
HC-D16 Series Sectional Valves – Hydraulic Pilot Work Section with Check Valve – A & B Port 3/4″ BSP -G12
HC-D16 Work Section with Hydraulic Pilot Actuators and Check Valve
No Port Relief facility
HC-D16-HYDSPOOL Hydraulic Pilot Spool included
Parallel Circuit Work Section Valve – RP G05
Spool Type: Standard 3 Position Double Acting – Hydraulic Pilot Spool
Spool Actuation: H006 | Hydraulic Pilot Actuator on both ends
Thread Type for Actuator: 1/4” BSP | -G04 | ISO-228
Work Section (A) and (B) Port: 3/4″ BSP | -G12 | ISO-228
Standard Working Conditions Spec
Flow Rate: 40Gpm
Pressure Rate: 5000Psi | 345Bar
Max Flow: 150Lpm
Max Pressure on (T): 290Psi | 20Bar
Operating Temp: -25°C to +80°C
Kinematic Viscosity: from 10 – 460 mm²/S
Contamination Level: 19/16 ISO 4406
Filtration Level: β 10 > 75
To be used with HC-D16-I Inlet Section and HC-D16-O Outlet Section
Other known codes: HC-D16-W-HYD, HC-D16 H006 F001A RP, HC-D16-H006-F001A-RP
