Line Mounting Lift Valve AC220V
Complete Line Mounting Lift Valve AC220V 3/8″ BSP
Web Price:
Original price was: R5,922.50.R4,738.00Current price is: R4,738.00.
Stock:
1 in stock

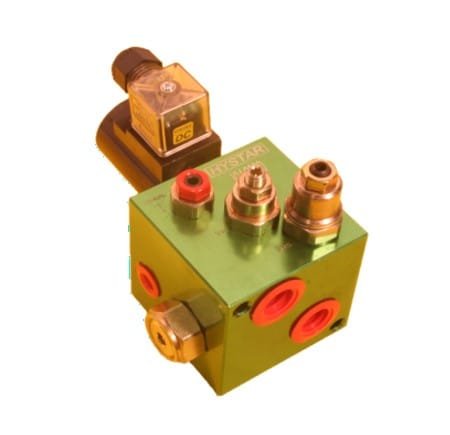

Line Mounting Lift Valve AC220V
- Line Mounting Lift
- or known as Scissor Lift Valve
- 3/8″ BSP Threaded= G-06
- AC220V (50Hz)
- Max Flow 40Lpm
- Max Pressure 210Bar
- Operating Temp: -20°C ~ 120°C
- NC Cartridge + Flow Control + Check + Emergency Lower + Relief
- This valve can be used with any Single Acting Cylinder system, like a scissor lift. Where the cylinder comes down on its own weight.
- The valve has P=pressure in, T=tank line, A= application (Cylinder), M=1/4″ Gauge ports.
- The block contains a 240bar relief valve, a N/C single poppet valve, a check valve, a flow control (return speed only) and an emergency release valve (red nut) to lower the cylinder if power is out.
View our Full Range of Special Valves HERE
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
