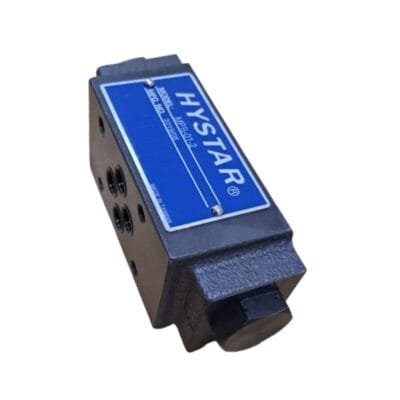

NG6 Sandwich Single Pilot Operated Check Valve, On B, 2Bar
NG6 Cetop3 Sandwich Single Pilot Operated Check Valve, On B, 2Bar Cracking Pressure
Web Price:
Original price was: R2,242.50.R1,794.00Current price is: R1,794.00.
Stock:
1 in stock
NG6 Cetop3 Sandwich Single Pilot Operated Check Valve
Type: Sandwich / Modular Control Valve
Control Line: Port B
Valve Size: (DSG-) 01 (NFPA-D03)
Cracking Pressure: 2Bar
Includes Din 912 Bolts
Max Operating Pressure: 250Bar / 360Psi
Max Flow: 50Lpm / 13.2USgpm
Port Size: 1/8”
This Valve is of the modular design improved from the pilot operated check valve used for preventing the actuator from self-operating, as well as for valve position holding.
The valve is of the internal drain type.
Other known codes: MPB-01-2-20, SV-MPB-01, MPB-01220
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
Delivery & Collection Information
If you select the Courier option:
We use The Courier Guy to deliver your parcel to all major City's and towns within South Africa.
You will receive a waybill notification once you have checked out and made payment.
You can track your parcel via this link using the waybill/code provided on email:
Track your parcel here
Local deliveries are next day within the Cape Town - Western Cape area.
National deliveries are between 3-4 days depending on where you are located.
Collection or "I will send my own courier" Options:
You will need to select if you are collecting yourself or sending your courier company to collect.
We need for you or your courier service to provide your Invoice number upon collection.
You will receive an Invoice once payment is confirmed and the order has been picked and packed. The invoice will be a notification that you can now come collect or send your courier service.
NG6 Cetop3 Sandwich Single Pilot Operated Check Valve
Type: Sandwich / Modular Control Valve
Control Line: Port B
Valve Size: (DSG-) 01 (NFPA-D03)
Cracking Pressure: 2Bar
Includes Din 912 Bolts
Max Operating Pressure: 250Bar / 360Psi
Max Flow: 50Lpm / 13.2USgpm
Port Size: 1/8”
This Valve is of the modular design improved from the pilot operated check valve used for preventing the actuator from self-operating, as well as for valve position holding.
The valve is of the internal drain type.
Other known codes: MPB-01-2-20, SV-MPB-01, MPB-01220
