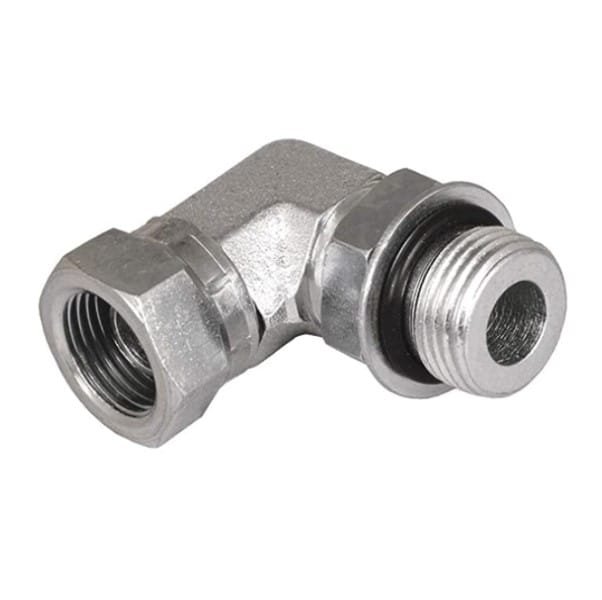

NPT F Swivel 3/8″ x SAE M 1/4″ 90° Elbow
3/8″ NPT Female Swivel x 1/4″ SAE O-Ring Boss Male 90° Elbow
Web Price:
Original price was: R138.00.R110.40Current price is: R110.40.
Stock:
1 in stock
NPT Female Swivel -06 x SAE ORB Male -04 90° Elbow
Size: 3/8″ x 1/4″ -06 x -04
ORB Male Size: 9/16-18
NPTM Female Swivel Size: 1/4-18
SAE J514 / ISO 11926-3
SAE – O-Ring Boss / ORB
SAE Male – This straight thread connection uses the same threads as the JIC 37° . However the 37° flare has been removed and an o-ring has been added. When mated with a female o-ring boss port the o-ring is trapped in a special tapered counter bore to affect the seal.
NPT – National Pipe Thread
NPTM – National Pipe Thread Mechanical
NPTM has a 30° internal chamfer & 60° cone seat
SAE 140257
Max Working Pressure: 4000PSI
Material: Carbon Steel – Zinc Plated Finish
Type: Pipe / Tube Adapter
Applications: Petroleum, Lubricating oils, Diesel, Gasoline, Ethanol blends, Air Brake, Refrigerant etc.
Other known codes: 2OU9, 9515, 9-6901, 6901, 2507, 2068, MB-FPX90
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
